This forum is intended for questions about kinetics, Surface Plasmon Resonance and the instruments related to these techniques.
2 Questions: Functional Ligand and Reproducibility
- mtarca
- Topic Author
- Visitor
-
5 years 2 months ago #1
by mtarca
2 Questions: Functional Ligand and Reproducibility was created by mtarca
Dear Arnoud,
I have 2 questions.

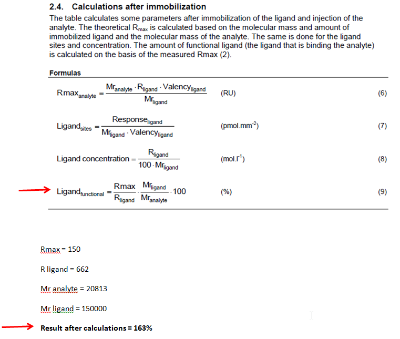

1) The first one is in regards to calculation of functional ligand. I saw Biacalculations information in the site and followed the formula for functional ligand. I got about 163%. See attached. Is this typical? Why above 100%? The mol. wt. of the analyte is 20813. What should I expect for higher molecular weight analytes like 67kDa?

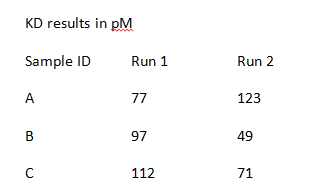

2) The second one is in regards to reproducibility of the KD's, if I run the same samples back to back (ie. different days). Is getting approximately 2x difference acceptable in the world of SPR? Also, see attached data.
Thanks.
I have 2 questions.
1) The first one is in regards to calculation of functional ligand. I saw Biacalculations information in the site and followed the formula for functional ligand. I got about 163%. See attached. Is this typical? Why above 100%? The mol. wt. of the analyte is 20813. What should I expect for higher molecular weight analytes like 67kDa?
2) The second one is in regards to reproducibility of the KD's, if I run the same samples back to back (ie. different days). Is getting approximately 2x difference acceptable in the world of SPR? Also, see attached data.
Thanks.
Please Log in or Create an account to join the conversation.
- Arnoud
- Visitor
-
5 years 2 months ago - 5 years 2 months ago #2
by Arnoud
Replied by Arnoud on topic 2 Questions: Functional Ligand and Reproducibility
Hi,
I was wondering if your ligand is an antibody? Antibodies have two binding sites thus you have to multiply the Rligand with 2 and then you get a functional ligand percentage of ~81%.
High affinity interactions rely heavily on the dissociation part of the sensorgram. A slight drift can alter the results already. Thus I think you are pretty good here. If possible repeat a third time and try to get a CV below 20-30%.
Regards
Arnoud
I was wondering if your ligand is an antibody? Antibodies have two binding sites thus you have to multiply the Rligand with 2 and then you get a functional ligand percentage of ~81%.
High affinity interactions rely heavily on the dissociation part of the sensorgram. A slight drift can alter the results already. Thus I think you are pretty good here. If possible repeat a third time and try to get a CV below 20-30%.
Regards
Arnoud
Last edit: 5 years 2 months ago by Arnoud.
