Homemade set-up
- SPRella
- Topic Author
- Visitor
-
8 years 9 months ago #1
by SPRella
Homemade set-up was created by SPRella
Hello guys,
I am pretty new to this topic and not a physicist.
We have here a home build SPR set up and I need to study its construction, so I can build up one on my own in a different laboratory. This is part of my Master Thesis.
My problem is the laser beam it self. I am trying to make it paralel but once I add the prism, the laser beam falls down so that I can't use a collecting lense. The laser beam is moving and I can't make any measurements, since the beam moves and doesn't touch the detector at some angles.
I can see the plasmon (the laser beam disappears almost).

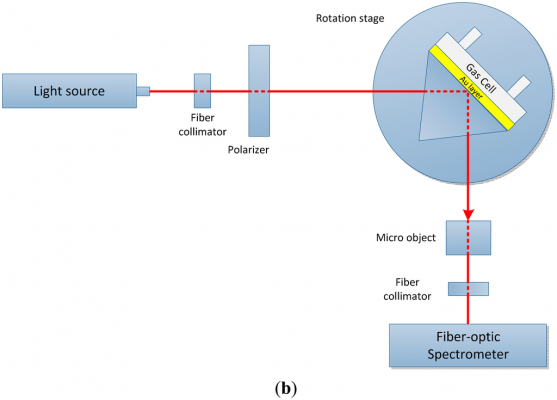

Anyone has an idea? Our set up looks somewhat like the picture
I am pretty new to this topic and not a physicist.
We have here a home build SPR set up and I need to study its construction, so I can build up one on my own in a different laboratory. This is part of my Master Thesis.
My problem is the laser beam it self. I am trying to make it paralel but once I add the prism, the laser beam falls down so that I can't use a collecting lense. The laser beam is moving and I can't make any measurements, since the beam moves and doesn't touch the detector at some angles.
I can see the plasmon (the laser beam disappears almost).
Anyone has an idea? Our set up looks somewhat like the picture
Please Log in or Create an account to join the conversation.
- SPRella
- Topic Author
- Visitor
-
8 years 9 months ago #2
by SPRella
Replied by SPRella on topic Homemade set-up
I just figured out the problem, you can delete this post.
Thank you
Thank you
